Document No: BC-QTN-2026-024

Date: 19 / 09 / 2026

Currency: EGP

QUOTATION

Terrace Glass Enclosure Project Supply & Installation — Sliding Window · Fixed Glazing · Bi-Folding (Accordion) Doors

Client

Villa Terrace

Scope of Work

Glass Enclosure

Total Area / Linear

21.19 m² — 32.04 m.l.

Currency

Egyptian Pound (EGP)

#	Description of Works & Specifications	Size (m)	Area (m²)	Rate EGP/m²	Amount (EGP)
1	Sliding glass window — 10 mm tempered (toughened) safety glass, sliding leaves on a black aluminium track. Supply & installation.	2.38 × 2.50	5.95	4,000	23,800.00
2	Fixed glazing — 10 mm tempered (toughened) safety glass, fixed lites in a slim black aluminium frame. Supply & installation.	3.16 × 2.41	7.62	2,800	21,336.00
3	Bi-Folding (accordion / "cardion") doors — 10 mm tempered safety glass, bottom-rolling sliding-folding leaves that concertina & stack to the side (bi-parting). Supply & installation.	3.16 × 2.41	7.62	10,000	76,200.00
TOTAL		—	21.19 m²	32.04 m.l.	121,336.00

GRAND TOTAL — Area 21.19 m² / Linear 32.04 m.l.

EGP 121,336

Notes & Terms

• All glass is 10 mm tempered (toughened) safety glass, black anodised aluminium frames, tracks & hardware.
• The bi-folding doors are a bottom-rolling sliding-folding (accordion) system — leaves fold flat against one another and stack to the side (bi-parting).
• Prices are in Egyptian Pounds (EGP) and include the glass to the specification stated above.
• Payment terms: 70% advance on contract, 30% on installation.
• Delivery & installation: within 15 days from the date of the advance payment.
• Dimensions are approximate and to be re-measured on site before fabrication and execution.
• This quotation is valid for 15 days from its date.

For / BlueCrest Glass & Facades

Submitted by — Signature & Stamp

For / Client

Approved — Signature & Stamp

BlueCrest Trading S.A.E — Cairo, Egypt bluecresttr.com • sales@bluecresttr.com • +20 100 013 3391

SHOP DRAWING

Terrace Glass Enclosure — Sliding · Fixed · Bi-Folding

Project: Villa Terrace • Ref: BC-QTN-2026-024 • Drawing SD-01

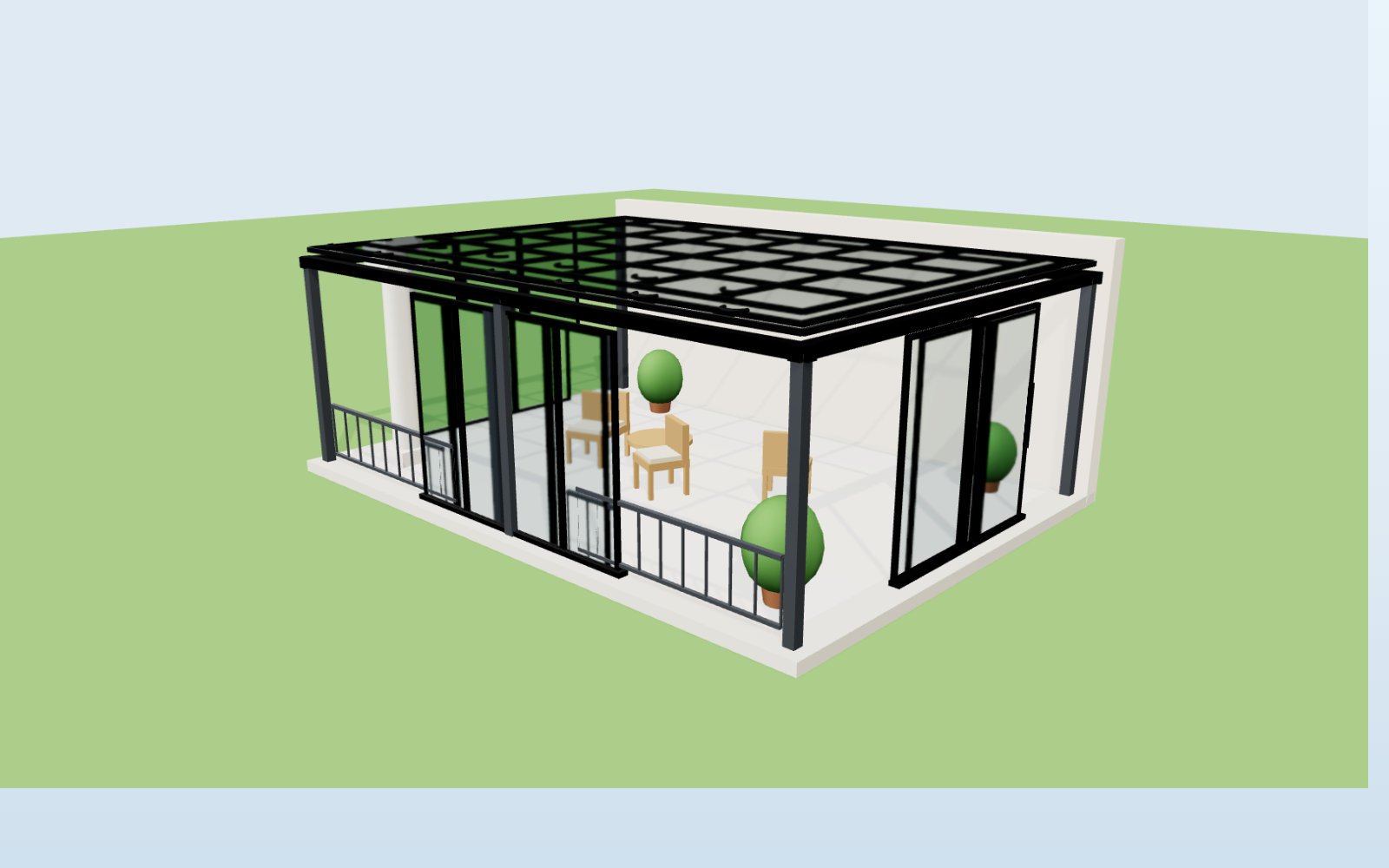

A. 3D ISOMETRIC — Terrace Glass Enclosure

drag to rotate • scroll/pinch to zoom • double-tap to auto-spin

Glass Specification

10 mmTempered
(toughened)
safety glass

edgepolished

10 mm tempered (toughened) safety glass • clear float, heat-soaked • black anodised aluminium framing

Glass typeTempered 10 mm

Safety classEN 12150

Light Trans.≈ 88 %

EdgesPolished

FrameBlack alu.

HardwareBlack

Assembly Data

Sliding window2.38 × 2.50 m

Fixed glazing3.16 × 2.41 m

Bi-Folding doors3.16 × 2.41 m

Steel handrailH = 0.80 m

Total Glass Area21.19 m²

Total Linear32.04 m.l.

Framing / HardwareBlack anodised aluminium · existing steel columns & handrail

Glass Summary — 3 items

Item	Type	Area	EGP/m²
Sliding window	Sliding	5.95 m²	4,000
Fixed glazing	Fixed	7.62 m²	2,800
Bi-Folding doors	Accordion	7.62 m²	10,000
TOTAL		21.19 m²	—

Bi-folding = bottom-rolling sliding-folding leaves that concertina & stack to the side (bi-parting). Sliding window on the track; fixed glazing in a slim frame.

B. PLAN — Terrace layout

SCALE — NTS

C. BI-FOLDING (accordion) — 3160 × 2410

SCALE — NTS

D. SLIDING WINDOW — 2380 × 2500

SCALE — NTS

E. FIXED GLAZING — 3160 × 2410

SCALE — NTS

F. FOLDING — STACK SEQUENCE (plan)

SCALE — NTS

G. CONFIGURATION KEY

SLIDING leaf (arrow = travel direction)

FIXED glazing (X marks a fixed lite)

BI-FOLDING (accordion — folds & stacks)

Steel handrail (existing) H = 0.80 m

3 GLAZED SYSTEMS

1 · SLIDING window — 2.38 × 2.50 m
2 · FIXED glazing — 3.16 × 2.41 m
3 · BI-FOLDING doors — 3.16 × 2.41 m
+ existing steel columns & handrail

Glass Item Schedule — Approved Cutting List · 3 items · all 10 mm tempered safety glass

#	Item	Size (cm)	Area (m²)	Linear (m.l.)
1	Sliding window (10 mm)	238 × 250	5.95	9.76
2	Fixed glazing (10 mm)	316 × 241	7.62	11.14
3	Bi-Folding accordion (10 mm)	316 × 241	7.62	11.14
TOTAL — 3 items			21.19	32.04

#	Item	Area (m²)	Rate EGP/m²	Amount (EGP)
1	Sliding window	5.95	4,000	23,800.00
2	Fixed glazing	7.62	2,800	21,336.00
3	Bi-Folding doors	7.62	10,000	76,200.00
TOTAL		21.19	—	121,336.00

Notes & Specifications

• All glass is 10 mm tempered (toughened) safety glass (EN 12150), clear float with polished edges.
• Item 1 — Sliding window 2.38 × 2.50 m: horizontally sliding leaves on a black aluminium track.
• Item 2 — Fixed glazing 3.16 × 2.41 m: fixed lites in a slim black aluminium frame (no operation).
• Item 3 — Bi-Folding (accordion) doors 3.16 × 2.41 m: bottom-rolling sliding-folding leaves that concertina & stack to the side (bi-parting) — clears the opening fully.
• Hardware: black anodised aluminium frames, tracks, hinges & handles; installed against the existing steel columns & H = 0.80 m handrail.
• Dimensions are approximate and to be re-measured on site before fabrication & execution.
• Total glass area 21.19 m² / linear 32.04 m.l. • Supply & installation EGP 121,336. Payment 70% advance / 30% on installation; delivery within 15 days of advance.

BlueCrest Glass & FacadesCairo, Egypt

Project

Terrace Enclosure

Client

Villa Terrace

Drawing No.

SD-01

Reference

BC-QTN-2026-024

Date

19 / 09 / 2026

Scale

NTS

Rev.

Units

BlueCrest Trading S.A.E — Architectural Glass & Facades bluecresttr.com • sales@bluecresttr.com • +20 100 013 3391
